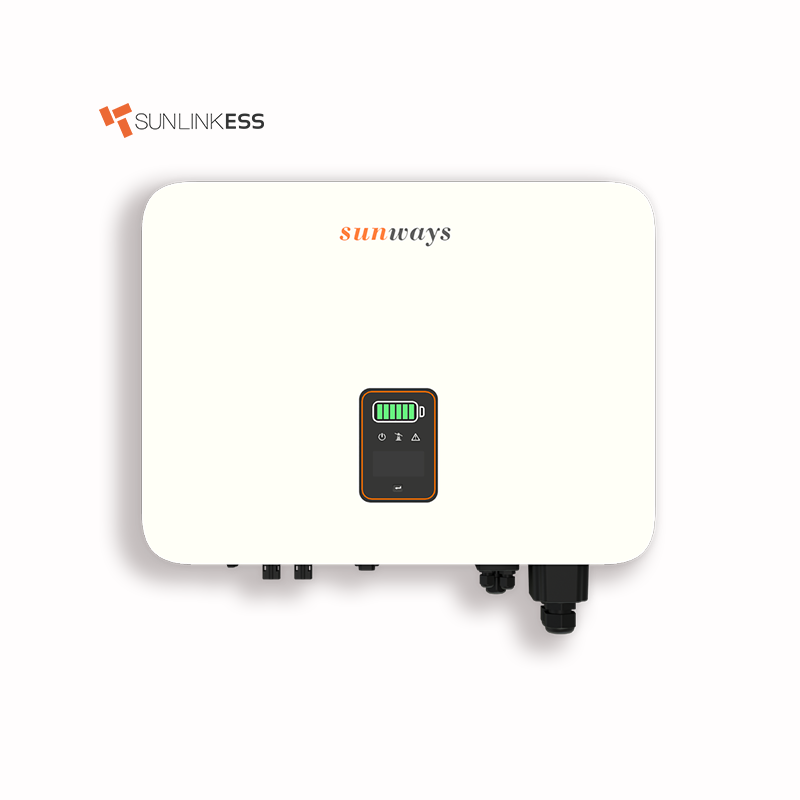

Sunways 12KW Three Phase Hybrid Inverter

The Sunways 4-12kW hybrid inverter series is an advanced inverter used in three-phase solar energy systems. Fashion Sunways 12KW Three Phase Hybrid Inverter is designed to work with both batteries and the grid.

Send Inquiry

Product Description

Sunways 12KW Three Phase Hybrid Inverter is capable of converting DC power from solar panels into AC power to be used in homes, businesses, or fed to the grid,and realizes intelligent power management and dispatching .With a battery range spanning from 140V to 750V, it widens the possibilities for enhanced energy storage. This translates to more battery connections and an increased energy capacity, ensuring greater energy safety and potential savings on your daily electricity consumption.Sunways 12KW Three Phase Hybrid Inverter has MPPT (Maximum Power Point Tracking) technology to ensure maximum power production from solar panels. Moreover, it has built-in communication protocols to facilitate remote monitoring and management of the system.

SUNWAYS STH 4~12KTL-HT-P
HYBRID SERIES | 2 MPPTs |Three Phase

STH-4KTL-HT-P
STH-5KTL-HT-P
STH-6KTL-HT-P
STH-8KTL-HT-P
STH-10KTL-HT-P
STH-12KTL-HT-P

Sunways 12KW Three Phase Hybrid Inverter solar system is usually composed of the PV array, hybrid inverter, lithium battery, loads and power grid. As shown in the following figure：

This hybrid inverter has a maximum AC output power of 12 kilowatts and The inverter also has high-speed switching technology to reduce overall conversion losses.Sunways hybrid inverters rely on overloading ability and wide power range, the costs of some big power inverters are slightly lower than the similar products of other German brands. With many regional certificates received or on the way, this series is ready to sell in many markets such as Europe, the UK, South Africa, Australia, North America, India, etc.

Technical Parameters

Model		STH-4KTL-HT	STH-5KTL-HT	STH-6KTL-HT	STH-8KTL-HT	STH-10KTL-HT	STH-12KTL-HT
PV Input	Max. Input Power (W)	6,400	8,000	9,600	12,800	16,000	19,200
	Start-up Voltage (V)	150	150	180	180	180	180
	Max. DC Input Voltage (V)	1000	1000	1000	1000	1000	1000
	Rated DC Input Voltage (V)	620	620	620	620	620	620
	MPPT Voltage Range (V)	100-850	100-850	100-850	100-850	100-850	100-850
	No. of MPP Trackers	2	2	2	2	2	2
	No. of PV Inputs	1/1	1/1	1/1	1/1	1/1	1/1
	Max. Input Current (A)	13/13	13/13	13/13	13/13	13/13	13/13
	Max. Short-circuit Current (A)	18/18	18/18	18/18	18/18	18/18	18/18
Battery	Battery Type	Lithium Battery (with BMS)
	Battery Communication Mode	CAN/RS485
	Battery Voltage Range (V)	135-750
	Max. Charge/Discharge Current (A)	25/25
	Rated Current of Built-in Fuse (A)	63
Output (Grid)	Rated Output Power (W)	4,000	5,000	6,000	8,000	10,000	12,000
	Max. Output Power (W)	4,400	5,500	6,600	8,800	11,000	13,200
	Max. Apparent Power (VA)	4,400	5,500	6,600	8,800	11,000	13,200
	Max. Input Apparent Power (VA)	8,000^①	10,00^①	12,000^①	16,000^①	16,500^①	16,500^①
	Max. Charging Power of Battery (W)	4,000	5,000	6,000	8,000	10,000	12,000
	Rated Output Voltage (V)	3L/N/PE, 230/400V
	Rated AC Frequency (Hz)	50/60Hz 45-55Hz/55-65Hz
	Max. Output Current (A)	6.7	8.3	10	13.3	16.5	20
	Power Factor	0.8 leading --- 0.8 lagging
	Max. Total Harmonic Distortion	<3% @Rated Output Power
	DCI	<0.5%ln
Output (Back-up)	UPS Switching Time	<10ms
	Rated Output Voltage (V)	3L/N/PE, 230/400V
	Rated AC Frequency (Hz)	50/60Hz 45-55Hz/55-65Hz
	Max. Apparent Power (A)	4,400	5,500	6,600	8,800	11,000	13,200
	Peak output apparent power (VA)	8,000^②, 60s	10,000^②，60s	12,000^②, 60s	16,000^②, 60s	20,000^②, 60s	20,000^②, 60s
	Peak Output Apparent Power/per Phase (A)	16,00^③	2,100^③	2,600^③	3,300^③	4,000^③	5,000^③
	Voltage harmonic distortion	<3% @Linear load
Efficiency	Max. Efficiency	98.1%	98.1%	98.1%	98.2%	98.2%	98.2%
	European Efficiency	97.3%	97.3%	97.3%	97.4%	97.4%	97.4%
	Max. Battery Charging Conversion Efficiency	96.2%	96.2%	96.2%	96.3%	96.3%	96.3%
	Max. Battery Discharge Conversion Efficiency	96.2%	96.2%	96.2%	96.3%	96.3%	96.3%

Protection
DC Reverse Polarity Protection	Integrated
Battery Input Reverse Connection Protection	Integrated
Insulation Resistance Protection	Integrated
DC Switch	Optional
Surge Protection	Integrated
Over-temperature Protection	Integrated
Residual Current Protection	Integrated
Islanding Protection	Frequency Shift, Integrated
AC Over-voltage Protection	Integrated
Overload Protection	Integrated
AC Short-circuit Protection	Integrated

General Data
Dimensions (mm)	550W410H175D
Weight (KG)	26~28
Protection Degree	IP65
Self-consumption at Night (W)	<15
Topology	Transformer less
Operating Temperature Range (° C)	-30-60
Relative Humidity (%)	0-100%
O perating Altitude (m)	4000 (derating@ > 3000)
Cooling	Natural Convection
Noise Level (dB)	<25
Display	OLED & LED
Communication	WiFi/LAN (Optional)

Leading Features：
● Max. efficiency up to 98.2%
● Fanless design, ultra-silence
● Intelligent power dispatching
● Support unbalance output on both on-grid and back-up side
● Powerful load adaptability, support multiple loads stable access
● OLED display+App，two ways for data checking and management
● Uninterruptible power supply, switch to off-grid mode within 10ms
● 140~750V super wide battery voltage range, adapt to bigger capacity battery

Application：

Morning: low output, high demand
In the early morning, PV generation cannot meet the energy consumption, Sunways energy storage system will bridge the gap with the power stored in the battery in the previous day.

Midday: high output, low demand
PV generation is at its peak in the day time. But since nobody is at home and the energy consumption is very low, so most generated power will be stored in the battery of Sunways energy storage system.

Evening: high demand, zero output
The highest energy consumption in a day is at the evening and PV generates little even zero energy at this time. The Sunways energy storage system will bridge the gap with the power generated during the day.
