5kwh Lithium Battery Stackable
The easy-maintainable 5kwh Lithium Battery Stackable is a type of rechargeable battery that is commonly used in applications like solar energy storage, electric vehicles, power backup systems, and other high-powered devices.
Send Inquiry
Product Description

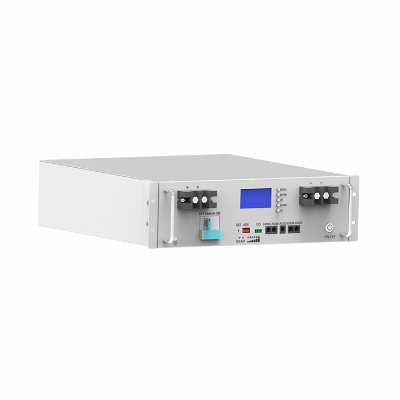

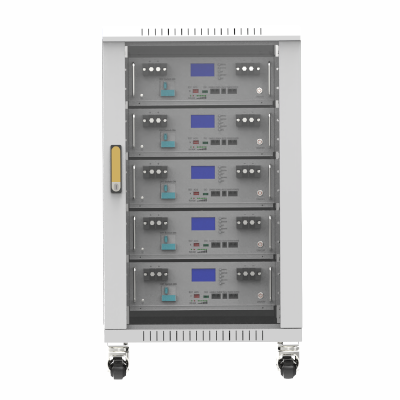

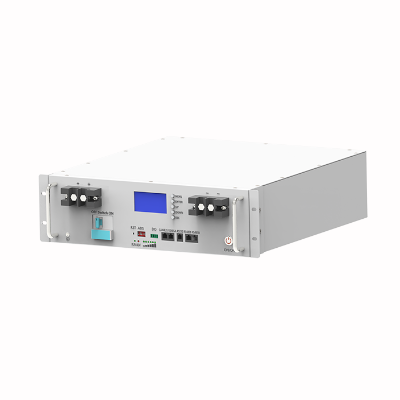

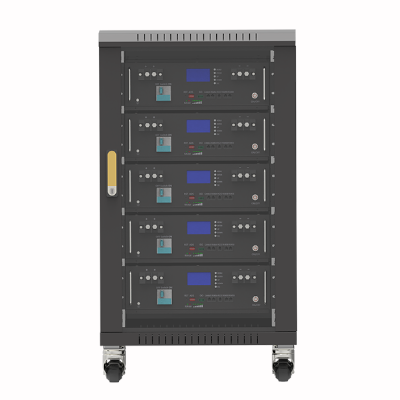

5kwh Lithium Battery Stackable, LFP-Rack box, is a Low-voltage lithium battery. With a scalable modular design, the capacity range can be expanded from 5.12kWh to 51.2kWh. The modules of the fashion 5kwh Lithium Battery Stackable are connected by cables to support high-power work and are easy to install and maintain. Long life technology ensures more than 6000 cycles with 90% DOD.
Lithium-ion batteries are a popular choice for solar energy systems because they have a high energy density, low maintenance requirements, and a longer lifespan compared to other battery types.
When selecting a lithium-ion battery for a solar energy system, there are several factors to consider, such as the battery capacity, voltage, discharge rate, charge time, and the temperature range that the battery can operate in.
The type of lithium-ion battery used in 5kwh Lithium Battery Stackable is lithium iron phosphate (LiFePO4), which is known for its high energy density, long cycle life, and high safety standards.
|

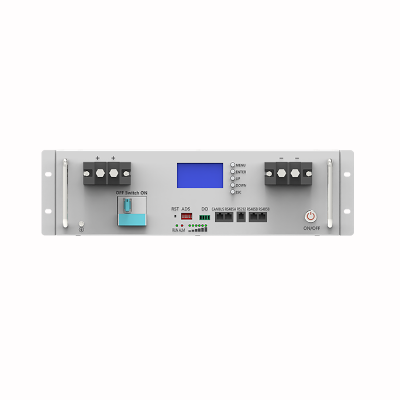

No. |
Item |
Description |
No. | Item | Description |
| 1 |
Rack mountear |
For battery pack mounting |
10 |
RUN |
Run LED display |
| 2 |
Handle |
Handle for carrier |
11 |
ALM |
Alarm LED display |
| 3 |
Battery + |
Terminal M8 screw |
12 |
SOC |
Capacity remaining display |
| 4 |
Reset |
Emergency Reset |
13 |
CANBUS |
Communication port with inverter |
| 5 |
ADS |
Battery address |
14 |
RS485A |
Communication port with inverter |
| 6 |
LCD |
Display battery information |
15 |
RS232A |
Communication port with PC |
| 7 |
Battery – |
Terminal M8 screw |
16 |
RS485B |
Internal communication between packs |
| 8 |
GND |
GND Connection for safety |
17 |
ON/OFF Switch |
ON/OFF battery by software |
| 9 |
MCB |
DC output |
Product Paramenters
| PERFORMANCE SPECIFICATIONS | |
| Nominal Voltage | 51.2V |
| Cell model/Configuration | 3.2V 100Ah(ANC)/16S1P |
| Capacity(Ah) | 100AH |
| Rated Energy(KWH) | 5.12KWH |
| Usable Energy(KWH) | 4.6KWH |
| Max. Charge/Discharge Current(A) | 50A /100A |
| Voltage Range(Vdc) | 48-56.5V |
| Scalability | Up to 10 parallel |
| Communieation | RS232-PC,RS485(B)-BAT RS485(A)-Inverter,Canbus-Inverter |
| Cycle Life | ≥6000cycles@25℃，90% DOD，60%EOL |
| Design Life | ≥15 Years(25℃） |
| MECHANICAL SPECIFICATIONS | |
| Weight(Approx)(KG) | 48kg |
| Dimension (W/D/H)(mm) | 483*480*133mm |
| Installation Mode | Stack |
| IP Grade | Ip21 |
| SECURITY AND CERTIFICATION | |
| Safety(Pack) | UN38.3,MSDS,IEC62619(CB),CE-EMC |
| Safety(Cell) | UN38.3,MSDS,IEC62619,CE,UL1973,UL2054 |
| Protection | BMS, Breaker |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating Temperature(℃） | Charge:-10℃~50℃；Discharge：-20℃-50℃ |
| Altitude (m) | ≤2000 |
| Humidity | ≤95%(Non-condensing） |
