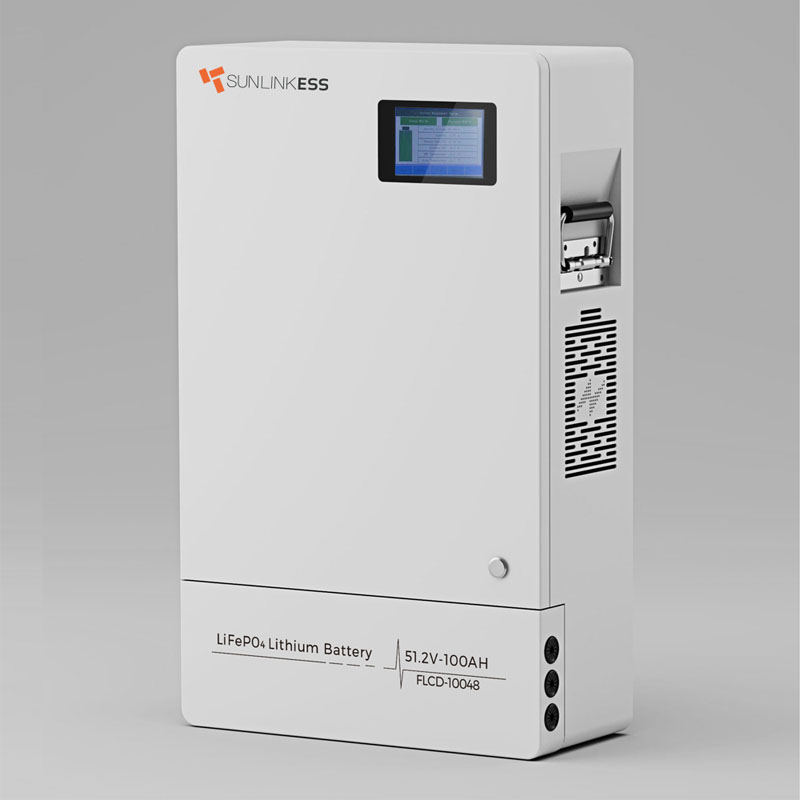

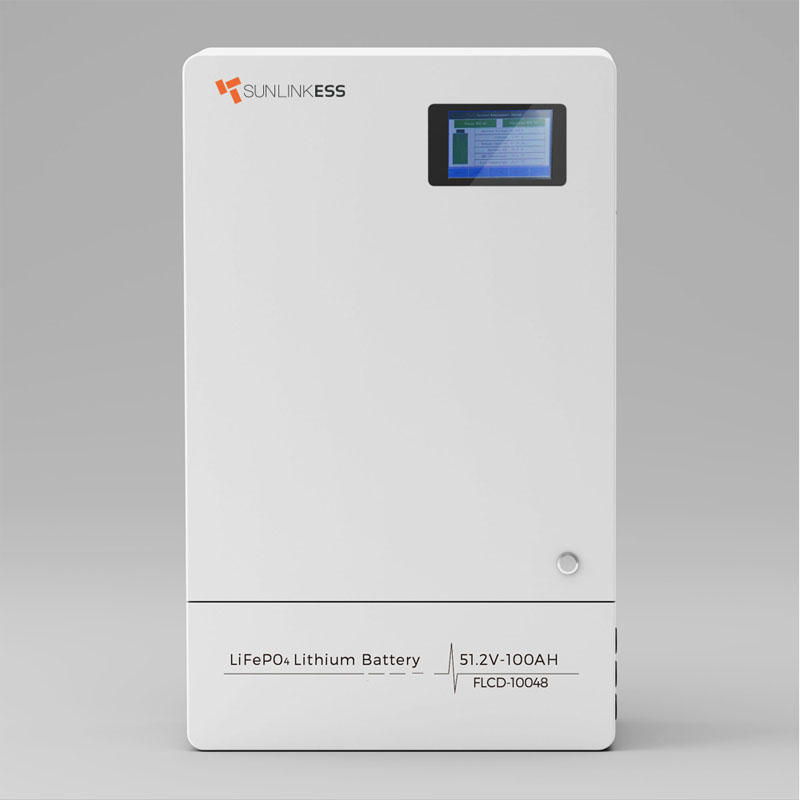

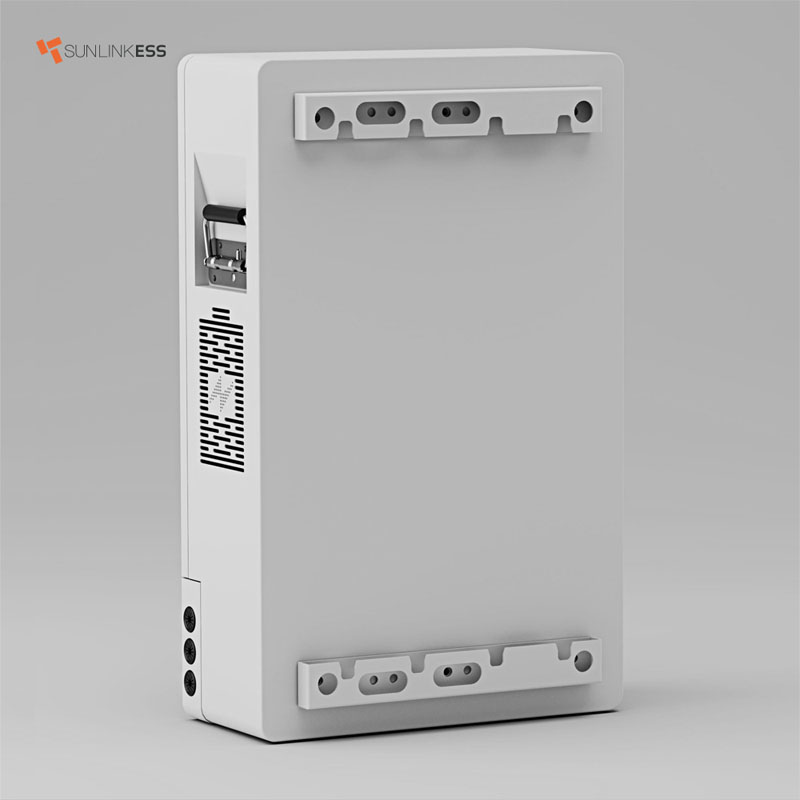

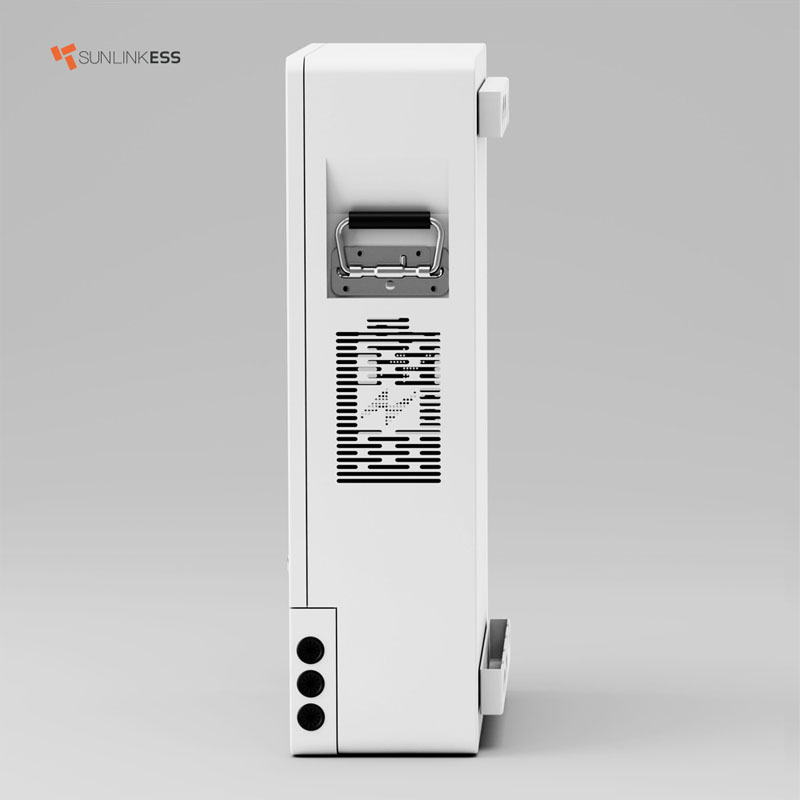

5kwh Lithium Battery Powerwall

The newest 5kwh Lithium Battery Powerwall is a line of lithium-ion batteries designed for use in energy storage applications, such as solar energy systems, backup power, and off-grid power systems.

Send Inquiry

Product Description

The newest 5kwh Lithium Battery Powerwall is a lithium iron phosphate (LiFePO4) battery that is designed to store energy in solar energy systems, backup power systems, and other off-grid applications.
One of the key features of this 5kwh Lithium Battery Powerwall battery is its expandability. It can be connected in parallel with other batteries to increase the overall capacity of the energy storage system. So, if you require more energy storage capacity in the future, you can easily expand your system by adding more batteries to it.
The battery features a high-quality BMS that protects against overcharging, over-discharging, short circuits, and other common issues that can reduce the lifespan of lithium-ion batteries. 5kwh Lithium Battery Powerwall also has a long cycle life, meaning that it will last for many years before needing to be replaced.

The LFS Series includes a range of batteries with different capacities, voltage ratings, and form factors, so it's easy to find a battery that meets your specific needs. Some examples include:
FLCD16-10024 battery with a voltage range of 22.4V~29.2V
FLCD16-10048 battery with a voltage range of 44.8V~58.4V
FLCD16-20048 battery with a voltage range of 44.8V~58.4V

All of the batteries in the LFS Series are sealed, maintenance-free, and designed for long cycle life. They also feature a built-in battery management system (BMS) that helps to ensure safe and reliable operation, and they are compatible with a variety of inverters and charge controllers.
Overall, the LFS Series is a reliable and versatile solution for energy storage applications that require high-performance lithium-ion batteries.

Specifications

Performance
Battery Model	FLCD16-10024	FLCD16-10048	FLCD16-20048
Capacity	25.6100AH(100A)	51.2V100AH(100A)	51.2V200AH(150A)
Battery Total Energy	2.5kwh	5kwh	10kwh
Rated Energy	2.5kw	5.1kw	6.5kw
Peak Energy	3kw	6kw	8kw
Rated Voltage (DC)	25.6V	51.2V	51.2V
Allowable BMS Load Current	10OA	100A	150A
Battery Voltage Range(Dc)	22.4V~29.2V	44.8V~58.4V	44.8V~58.4V
Inverter Operating Voltage Range (single-phase)	200V-240V	200V-240V	200V-240V
Inverter Operating Voltage Range (three-phase)	340-460V	340-460V	340-460V
Communication
Display	SOC status indication, LED indicator screen
Protocol	RS485 /RS232/ CAN (Series parallel connection with either option)
Specifics
Dimension（L x W x H）	370160400mm	370160600mm	500160850mm
Weight( Accessories Included)	~24Kg	~45Kg	~90Kg
Installation	wall-mounted or floor-mounted
Working Temperature	-20℃～ + 55℃
Maximum Working Altitude	4000 m（≥2000m derating)
Installation Environment	Indoor & outdoor scenario,
Working Relative Humidity	5%~95%
Heat Dissipation	natural convection
Protection Grade	IP65
Cell	LiFePO4
Expansibility	A max of 16 modules can be used in parallel
Matching Inverter	Most current mainstream inverters(lithium)
Package Dimension	420"200*450mm(carton)	650420210mm(carton)	920570340mm(wooden)
Satisfied Criteria
Safety & Certification	CE, CEC,IEC62619, IEC 60730, UN38.3

*1 Test conditions: Based on the factory date, charge and discharge rate at 0.2C at 100% discharge depth (DoD) and 25 ℃
*2 The weight of the battery module is based on the actual product, with a tolerance of ± 3% allowed
*3 The installation of battery packs is related to product quality assurance, safe and stable operation. Please follow the requirements of the user manual for standardized installation, use, and routine maintenance
