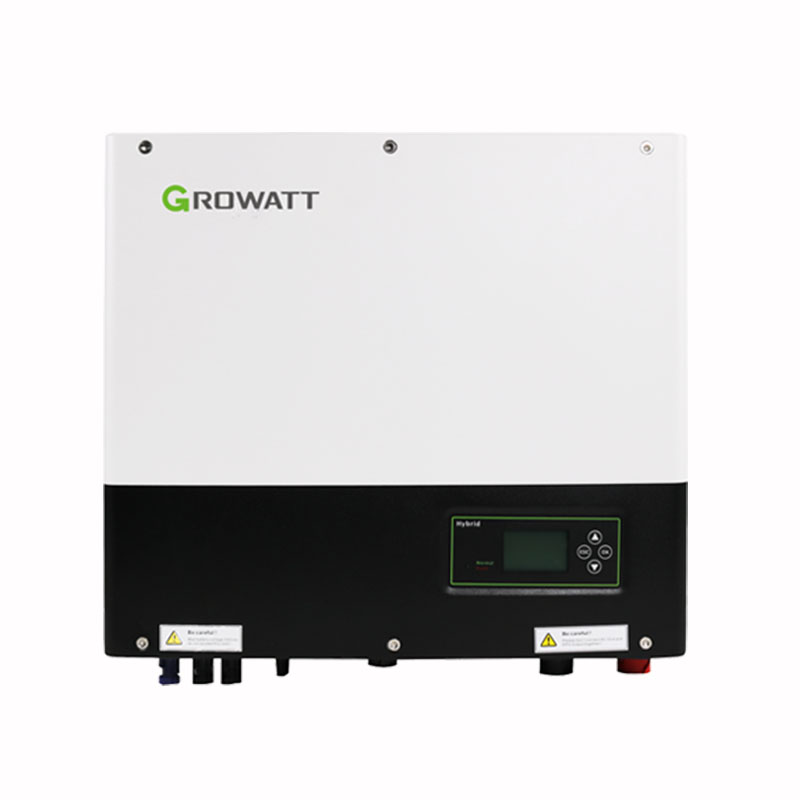

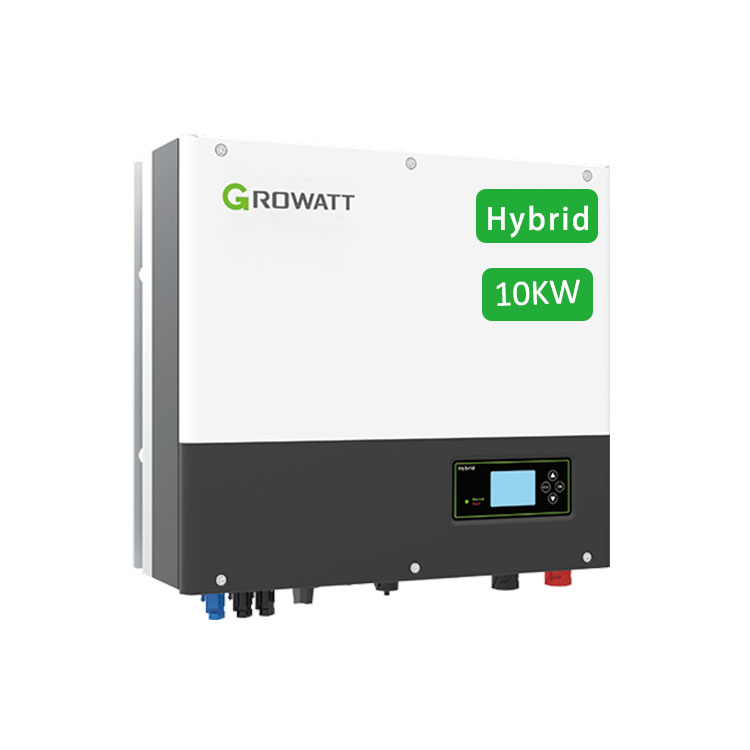

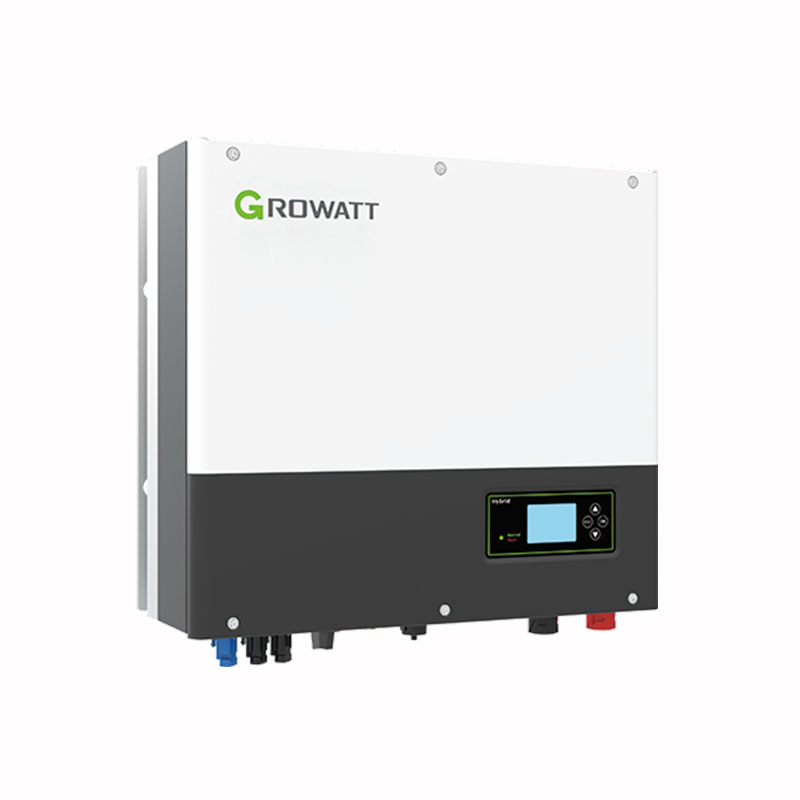

Growatt 10KW Three Phase Hybrid Inverter

Growatt SPH 4000-10000TL3 BH-UP are an advanced inverter designed for commercial or industrial solar energy systems.High-quality Growatt 10KW Three Phase Hybrid Inverter is capable of converting DC power generated from solar panels into AC power that can be used to power larger systems or fed back to the grid.

Send Inquiry

Product Description

The Growatt 10KW Three Phase Hybrid Inverter is an advanced inverter designed for commercial or industrial solar energy systems.The inverter also comes with built-in MPPT (Maximum Power Point Tracking) technology to ensure maximum power production from the solar panels. Additionally, it has a user-friendly interface for easy monitoring and control of the energy system. Growatt 10KW Three Phase Hybrid Inverter has a high conversion efficiency and comes with a built-in Wi-Fi module to connect to the internet for remote monitoring.

Residential Storage Inverter

SPH 4000-10000TL3 BH-UP
4-10kW | Hybrid | UPS

SPH 4000TL3 BL-UP
SPH 5000TL3 BL-UP
SPH 6000TL3 BL-UP
SPH 8000TL3 BL-UP
SPH 10000TL3 BL-UP

Growatt 10KW Three Phase Hybrid Inverter features the smart phase-level power control that can limit power export and has an outstanding efficiency up to 98.2%. They include an LCD & LED display with touch keys as well as a DC switch.

Feature：
● 100% three-phase imbalance output
● Smart phase-level power export limitation
● Wide battery voltage 100-550V
● UPS function, 10ms transition
● Scalable system configuration
● VPP interface ready
● DC/AC type II SPD
● 1.5 DC/AC Ratio

Technical Parameters

Datasheet	SPH 4000TL3 BH-UP	SPH 5000TL3 BH-UP	SPH 6000TL3 BH-UP	SPH 7000TL3 BH-UP	SPH 8000TL3 BH-UP	SPH 10000TL3 BH-UP
Input data(PV)
Max. recommended PV power (for module STC)	6000W	7500W	9000W	10500W	12000W	15000W
Max. DC voltage	1000V
Start voltage	120V
MPP voltage range	120V-1000V/600V
No. of MPP trackers	2
No. of PV strings per MPP tracker	1
Max. input current per MPP tracker	13.5A
Max. short-circuit carent per MFP tracker	16.9A
Output data(AC)
AC nominal power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Nominal AC voltage (range)	230V/400V (310~476V)
AC grid frequency (range)	50Hz/60Hz (45Hz-55Hz/55Hz-65Hz)
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Adjustable power factor	0.8leading…0.8lagging
THDi	<3%
AC grid connection type	3W+N+PE
Battery data (DC)
Battery voltage range	100~550V
Max charging and dschaging curent	25A
Continuous charging and discharging power	4000W	5000W	6000W	7000W	8000W	10000W
Type of battery	lithium/lead-acid
Backup power(AC)
Max. AC output power	4000W	5000W	6000W	7000W	8000W	10000W
Max. AC apparent power	4000VA	5000VA	6000VA	7000VA	8000VA	10000VA
Max. output current	6.1A	7.6A	9.1A	10.6A	12.1A	15.2A
Nominal AC output voltage	230V/400V
Nominal AC output frequency	50/60HZ
THDv	<3%
Switch time	<10ms
Efficiency
MAX. efficiency	97.6%	97.8%	98.0%	98.2%	98.2%	98.2%
European efficiency	97.0%	97.2%	97.3%	97.40%	97.40%	97.50%
MPPT efficiency	>97.4%
Protection devices
DC switch	Yes
DC reverse polarity protection	Yes
AC/DC surge protection	Type II
Battery reverse protection	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
Grid monitoring	Yes
Anti-islanding protection	Yes
Residual-current monitoring unit	Yes
Insulation resistance monitoring	Yes
General data
Dimensions (W/H/D)	505/453/198mm
Weight	30kg
Operating temperature range	-25℃... +60℃
Nighttime power consumption	< 13W
Topology	Transformerless
Cooling	Natural
Protection degree	IP65
Relative humidity	0-100%
Altitude	3000m
DC connection	H4 / MC4 (Optional )
AC connection	Connector
Display	LCD+LED
lnterfaces:RS485/CANAJSB	Yes
Monitor: RF/WIFI/GPRS	Optional
Waranly: 5 years /10 years	Yes/Optional
